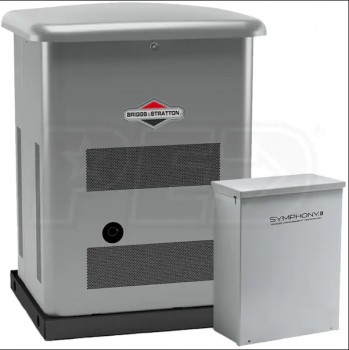

Briggs & Stratton 12kW Standby Generator System (Steel) (100A 16-Circuit + AC Shedding)

• B&S 12kW (LP) / 10.8kW (NG) Home Standby Generator System
• Automatically powers your home in seconds after sensing an outage
• 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center
• Select up to 16-priority circuits; Rated at 100-Amps @ 240-Volts
• NEMA 3R Indoor/Outdoor enclosure for mounting location flexibility
• ACCM-II Power Control Module Transfer Switch (2 x 4-Ton AC)
• Computer controlled load management power switching
• Expand your generators range by prioritizing powered circuits
• Runs on Natural Gas (NG) or Liquid Propane (LP)
• Simple field conversion for easier installations
• 627cc Commercial-Grade Vanguard® Air-Cooled Engine
• Full-pressure lubrication system w/ spin-on oil filter
• Advanced debris management for enhanced durability
• Premium Mecc Alte Alternator - Less Than 5% THD
• Improved frequency (HZ) regulation for cleaner power
• Capable of starting most 5-Ton central AC units
• Automatic Voltage Regulation (+/-1%)
• Helps prevent damaging voltage spikes
• Flexible Placement (Please Verify Local Building Codes)
• Tested against tough National Fire Protection Agency standards
• Can be placed as close as 18" from structure
• New Upgraded Control System
• LCD display w/ multi-line text graphics
• Low Idle mode for quieter exercise
• Independent 3-Stage Battery Charger
• Provides optimized charge for longer battery life
• Automotive-Grade Galvaneal Steel Enclosure
• Helps minimize corrosion & protects it from the elements
• 5 Year Limited Best in Class Warranty
• Covers parts, labor, and travel for 5-Years
• Assembled & Engineered In The USA
• From foreign and domestic parts

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

12000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

10800 Watts

LP Power Capacity

12000 Watts

NG Fuel Consumption @ 50% Load

116.9 ft³/hr

NG Fuel Consumption @ 100% Load

171.6 ft³/hr

LP Fuel Consumption @ 50% Load

1.68 gallons/hr

LP Fuel Consumption @ 100% Load

2.26 gallons/hr

Rated Amps

50 Amps

Decibel Rating @ 7m

69

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

100-Amps

Max Circuits

16

Battery

Not Included (540 CCA)

Enclosure

Steel

Circuit Breaker Size

60 Amps

A/C Ton Rating

2 x 4-Tons

Mounting Pad

Steel (Included)

Transfer Switch Style

Standard Installation

ATS Load Prioritizing

Sold Separately

ATS Load Shedding

Built-In

ATS Poles

2 Poles

ATS Service Disconnect

No

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
