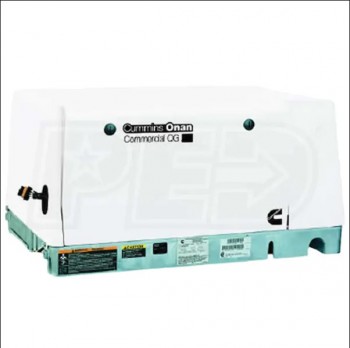

Cummins Onan QG 5500 - 5.5HGJAE-6757 - 5500 Watt EVAP Commercial Mobile Generator (120/240V 30A)

Image 1
  • Image 1
Price:
$2,569.86
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Cummins Onan QG 5500 - 5.5HGJAE-6757 - 5500 Watt EVAP Commercial Mobile Generator (120/240V 30A)

  • EVAP Model - Meets CARB Tier 3 & EPA Phase 3 Standards
  • 5.5 kW QG EVAP Commercial Mobile Generator (120/240V - 30A)
  • Quietest and lowest vibration generator set in its class
  • Designed for tough commercial applications - Runs (2) ACs
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.6 Gal/H @ 1/2 Load)
  • Allows for start & run without AC output to conserve fuel
  • Microprocessor Controlled w/ Automatic Safety Shutdowns
  • Digital voltage regulatotion provides stabilty as loads change
  • Self-diagnostic capability to simplify troubleshooting
  • Low oil pressure, over/under speed, and overcurrent protection
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • Integral Control Panel w/ Waterproof Remote Connector
  • Instant one-touch stop switch & Remote disable/continuous stop capability
  • 4-Point Mounting System w/ Coil Spring Vibration Isolators
  • Universal mounting tray allows for easy installation
  • Added Features -
  • Added Features - Auto Choke, Full-Flow Oil Filter & Long Life Fuel Filter

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
Gasoline
Rated Amps
22.9 Amps
Decibel Rating @ 3m
66
Hour Meter
Yes
Fuel Consumption
.35-.95 gallons/hr
Circuit Breaker Size
30 Amps
Grade Type
Professional
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
CC
653 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
290 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
33.6 Inches
Product Style
RV Generator
Product Width
22.2 Inches
Product Height
16.7 Inches
Additional Model Numbers

5.5 HGJAE-6757, A063B613

Find Similar Products by Tag

5.5 kW  Cummins  gasoline generator  Onan  Quiet Gasoline  remote start
