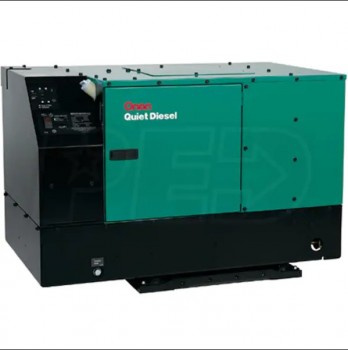

Cummins Onan RV QD10000 - 10HDKCA11506 - 10kW RV Generator (Diesel)

Image 1
  • Image 1
Price:
$6,111.29
Brand:
Cummins
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Cummins Onan RV QD10000 - 10HDKCA11506 - 10kW RV Generator (Diesel)

  • 10.0 kW Diesel Powered RV Generator (Model 11506)
  • Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
  • Runs 3 15,000 BTU AC units w/ 2500 additional watts available
  • Cummins Onan 1499cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Fuel Type
Diesel
Rated Amps
41.7 Amps
Diesel Fuel Consumption @ 50% Load
.54 gallons/hr
Decibel Rating @ 3m
70
Idle Control
Yes
Hour Meter
Yes
Fuel Consumption
.38-.78 gallons/hr
Circuit Breaker Size
45 Amps
Min. Air Inlet - Front
19" x 12"
Min. Air Outlet - Bottom
15" x 16"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
27 HP
CC
1499 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
767 Pounds
Consumer Warranty
3 Years
Product Length
41.4 Inches
Product Style
RV Generator
Product Width
24.5 Inches
Product Height
27 Inches
Additional Model Numbers

RV QD 10000, A055E835
