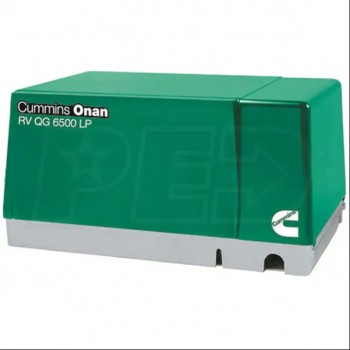

Cummins Onan RV QG 6500 LP - 6.5HGJAB-904 - 6.5kW RV Generator (LP)

Image 1
  • Image 1
Price:
$3,254.67
Brand:
Cummins
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Cummins Onan RV QG 6500 LP - 6.5HGJAB-904 - 6.5kW RV Generator (LP)

  • 6.5 kW LP Powered RV Generator (Model 904)
  • Provides more power for larger size RVs (30A & 30A Breakers)
  • Runs two 15,000 BTU AC units w/ 1500 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.7 Gal/H @ 1/2 Load)
  • Quietest in its class w/ excellent fuel efficiency
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Integral Control Panel
  • Instant one-touch stop switch
  • Added Features
  • Fuel filter, oil filter, air filter & mechanical governor
  • Automotive type starter & electric fuel solenoid

SPECIFICATIONS

Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.2 gallons/hr
Rated Amps
54.2 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
11.6 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2880 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
290 Pounds
Consumer Warranty
3 Years
Product Length
33.6 Inches
Product Style
RV Generator
Product Width
22.2 Inches
Product Height
16.7 Inches
Additional Model Numbers

RV QG 6500, A063B875
