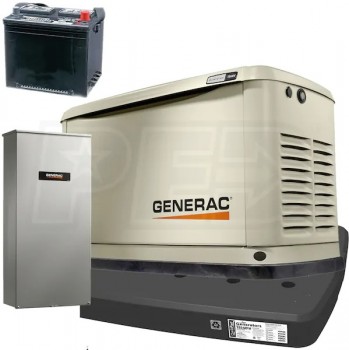

Generac Guardian® 18kW Aluminum Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + QwikHurricane® Pad + Battery

• 18kw (LP) / 17kW (NG) Guardian® Air-Cooled Standby Generator Package
• Protects your home and family during a power outage
• Includes Mobile Link™ Wi-Fi Remote Monitoring*
• Monitor generator status on a smart phone, tablet or PC
• *Requires internet connection and wireless router
• 5-Year Limited Warranty + 24/7-365 Customer Support
• Have your questions answered when it's convenient for you
• 200-Amp Service Entrance Rated Automatic Smart Switch
• Installs between main meter & service panel
• Allows for faster and less costly installation
• Standard Smart A/C Management Module
• Allows for the Smart Control of (4) A/C units
• Great for homes with multiple Air conditioners (24 VAC controlled)
• Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads & lock-out non-essential loads
• NEW Generac G-Force 800 Series Engine
• Hydraulic lifters for improved performance & less maintenance
• Full pressure lubrication system w/ 2 year oil change interval
• Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
• Connects to your existing LP or natural gas fuel supply
• TRUE POWER™ Electrical Technology
• Less than 5% Total Harmonic Distortion (THD) for utility grade power
• Automatic Digital Voltage Regulation (+/-1%)
• Allows for faster response time & maximum motor starting ability
• Evolution™ Digital Controller
• Multilingual, 2-Line LCD display for simple, straightforward operation
• Programmable-exerciser helps prevent oil seal drying and damage
• QUIET-TEST™ Self-Test Mode
• Runs at a lower RPM for a five or twelve minute test
• Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
• Corrosion resistant design for all weather conditions
• Installation Flexibility*
• Can be installed within 18" of a building
• *Always check local building codes
• Generac Standby Generators & Engines - Built In The USA*
• Built in the USA using domestic & foreign parts
• Includes Smart Battery Charger & 14" Flexible Fuel Line Connector
• Also Includes
• QwikHurricane® Generator Pad & Starting Battery

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

18000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

17000 Watts

LP Power Capacity

18000 Watts

NG Fuel Consumption @ 50% Load

169 ft³/hr

NG Fuel Consumption @ 100% Load

247 ft³/hr

LP Fuel Consumption @ 50% Load

1.70 gallons/hr

LP Fuel Consumption @ 100% Load

3.02 gallons/hr

Rated Amps

75 Amps

Decibel Rating @ 7m

55-65

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Included

Enclosure

Aluminum

Circuit Breaker Size

80 Amps

A/C Ton Rating

2 x 4-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Service Disconnect

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency

Wi-Fi Remote Monitoring

Yes

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

18000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

17000 Watts

LP Power Capacity

18000 Watts

NG Fuel Consumption @ 50% Load

169 ft³/hr

NG Fuel Consumption @ 100% Load

247 ft³/hr

LP Fuel Consumption @ 50% Load

1.70 gallons/hr

LP Fuel Consumption @ 100% Load

3.02 gallons/hr

Rated Amps

75 Amps

Decibel Rating @ 7m

55-65

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Not Included

Enclosure

Aluminum

Circuit Breaker Size

80 Amps

A/C Ton Rating

2 x 4-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Service Disconnect

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency

Wi-Fi Remote Monitoring

Yes
