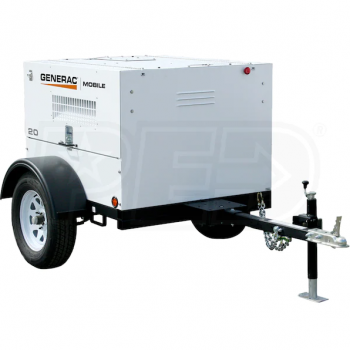

Generac Mobile MLG20IF4 - 19kW (Prime) / 20kW (Standby) Towable Diesel Generator w/ Isuzu Engine

• Generac Mobile MLG20IF4 Mobile Diesel Generator
• Designed & engineered for optimum performance & reliability
• Marathon Electric Brushless Alternator - Single-Phase Output
• Prime - 19 kW / 19 kVA (79A @ 240V)
• Standby - 20 kW / 20 kVA (83A @ 240V)
• Marathon SE350 Voltage Regulator
• Provides Voltage regulation of +/- 1% for cleaner power
• 2.2L Isuzu® Liquid Cooled Diesel Engine (EPA Tier 4 Final)
• Fuel efficient design runs at 1800 RPM for extended engine life
• Rubber vibration dampers isolate engine/generator from frame for quieter operation
• 50-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
• Provides up to 47.6 hours of run time @ 50% load
• Provides up to 23.8 hours of run time @ 100% load
• Automatic Low Oil / High Temperature Shutdown System
• Provides added safety to extend engine life
• Easy To Use System Controls
• 4-Position keyed switch (Preheat, Off, Run & Start)
• Hour Meter makes it simple to monitor run time and maintenance intervals
• Emergency stop switch located on front panel
• Internally Mounted Circuit Breakers w/ 100A Start Limit Breaker
• Provides added protection to all receptacles on genset
• (2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
• Individually breakered for added safety during operation
• (2) 120V 20A GFCI Duplex Outlets
• Provides the convenience of powering 120V equipment
• 14-Gauge, Sound Attenuated Steel Enclosure - 70 dB(A) @ 23'
• Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
• Fully-lockable, insulated & baffled w/ stainless steel hardware
• Multi-lingual operating/safety decals; Manual holder w/ operating manual
• 58" Track Width, DOT Approved Tubular Steel Trailer w/ 2" Ball Hitch
• Transportation tie downs, Safety chains w/ spring-loaded hooks
• Tail, side, brake, and directional lights; Recessed rear lights
• 15" ST205/75R15 - 6 ply wheel/tire & Single wall polyethylene fenders

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Alternator

Brushless

Auto Voltage Regulation

Yes

Rated Watts

19000 Watts

Surge Watts

20000 Watts

Fuel Type

Diesel

Rated Amps

167/83 Amps

Diesel Fuel Consumption @ 50% Load

1.05 gallons/hr

Tank Size

50 Gallons

Run Time @ 50% Load

47.6 Hours

Fuel Tank Material

Plastic

Fuel Gauge

Yes

Decibel Rating @ 7m

70

Idle Control

Yes

Hour Meter

Yes

Voltage Meter

Yes

Battery

Included

Enclosure

Steel

Circuit Breaker Size

100 Amps

Grade Type

Professional
