Product Description

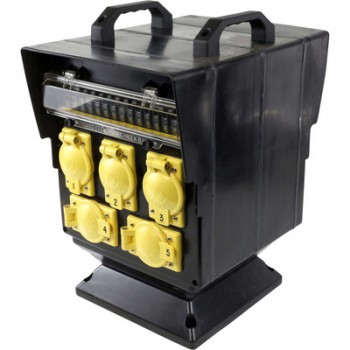

Generac Portable Power Distribution Box — 200 Amps, 120/208 Volts

This Generac Portable Power Distribution Box separates a 200 single-amp, 3-phase circuit into ten L21-20, 20 Amp locking outlets. The locking mechanism ensures a positive connection and prevents disconnecting under load. The 20 Amp circuits are used to power fans, pumps, lights, light portable tools and NEMA 5-20, 20 Amp Edison quad stringers.

What's Included

(1) Power distribution box

Features + Benefits

Heavy-duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather
Circuit breakers are mounted under hinged window for easy access and enhanced safety
Elevated base keeps receptacles above ground level

Input: (1) set of five 16 Series Cam-type, 400 Amp, single-pole, 600V, color-coded inlet, cover doors, panel mount
Output: (10) NEMA L21-20, 20 Amp, 4-pole, 5-wire, 125 VAC, locking outlets, cover doors, panel mount
(10) 20 Amp, 125 VAC, 3-pole, hydraulic magnetic, branch-rated circuit breakers
