Product Description

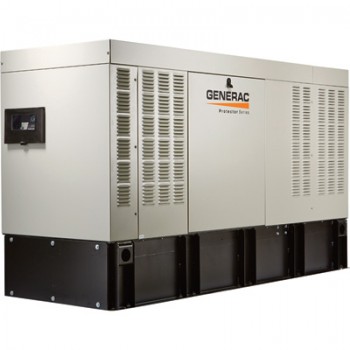

Generac Protector Series Diesel Home Standby Generator — 20 kW, 120/240 Volts, Single Phase, Model# RD02023ADAE

This Generac Protector® Series Diesel Home Standby Generator features Code Ready, a set of popular preconfigured options and a range of code-driven accessories, so you can feel confident that your generator will be able to conform to the required local codes which can vary from one region to another. Compatible with a variety of environments, the Protector Series is versatile, adaptable and meets UL requirements, making it an affordable choice for residential and light commercial applications for your backup power needs. Transfer switch sold separately. Assembled in U.S.A. Not intended for use as primary power in place of utility or in life-support applications. Read the owner's manual in its entirety before using this product.

What's Included

(1) Home standby generator

Features + Benefits

Code Ready, a set of popular preconfigured options and a range of code-driven accessories
External vent and fill, UL/CUL 142-listed, double-walled tank with leak sensor
Alarm is issued and generator shuts down in event of fuel leak
Secondary tank basin contains leaks, preventing fuel from entering environment
External viewing window provides easy inspection of generator status and breaker position
Removable doors offer easy service and fuel fill access

Built-in hour meter adds convenience
Quiet-Test™ weekly self-test mode runs at a lower RPM, is quieter, and consumes less fuel
Intuitive Evolution™ Controller features a multilingual, two-line LCD display for easy monitoring and management of generator functions
Transfer switch sold separately
5-year limited warranty

Key Specs

Item#	43412
Brand	Generac
Manufacturer's Warranty	5 year limited warranty
Ship Weight	1473.9 lbs
Rated Watts (kW)	20
Volts	120/240
Amps	83
Fuel Type	Diesel
Engine	Generac In-Line
Engine Displacement (cc)	2,280
Noise Level (dB)	70

Enclosure	Aluminum
Start Type	Automatic
Fuel Capacity (gal.)	34
Battery Required	Yes (12V, Group 27F, 700 CCA)
Battery Included	No
Transfer Switch	Not included
Auto Shutdown	Yes
UL Listed	Yes
Engine Cooling	Pressurized radiator
Dimensions L x W x H (in.)	80 13/16 x 30 1/2 x 49 13/32
