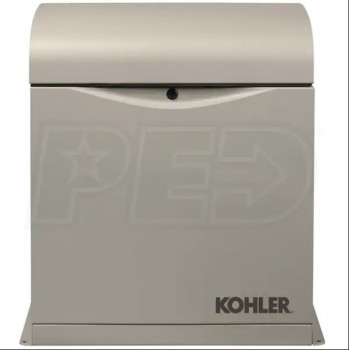

Kohler 12RESV - 12 kW Home Standby Generator

• Kohler Series 7000 V-Twin OHV Engine
• Powerful and reliable engine with hydraulic valve lifters
• Powerful Performance w/ PowerBoost™ Technology
• Greater motor-starting ability for large electrical loads
• Premium Power Quality (+/-1% Voltage Regulation)
• Protects sophisticated electronics with low distortion (<5%THD)
• Fast Response Time (Requires Automatic Transfer Switch)
• Kohler™ generators restore power in as little as 10 seconds
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx 71 dB(A) Max
• RDC2 Controller
• Easily view ATS status via LED lights on controller
• Glare-resistant, 2-line 16-character display - No More Codes
• Real time clock allows you to easily set weekly exercise
• Includes OnCue Remote Monitoring System
• Built-in Ethernet card, no hardware needed for OnCue
• Bold New E-Coat Dipped Steel Enclosure
• Pained with a durable powder coat finish to minimize corrosion
• Automatic Transfer Switch & Group 51 Battery (Required & Sold Separately)
• ***Not Compatible For Off-Grid Applications***
• Approved for stationary standby applications in locations served by a reliable utility source

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

12000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

11000 Watts

LP Power Capacity

12000 Watts

NG Fuel Consumption @ 50% Load

128 ft³/hr

NG Fuel Consumption @ 100% Load

216 ft³/hr

LP Fuel Consumption @ 50% Load

1.6 gallons/hr

LP Fuel Consumption @ 100% Load

2.9 gallons/hr

Rated Amps

50 Amps

Decibel Rating @ 7m

71

Transfer Switch

Automatic (Not Included)

Battery

Not Included (500 CCA)

Enclosure

Steel

A/C Ton Rating

5-Tons

Mounting Pad

Steel (Included)

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
