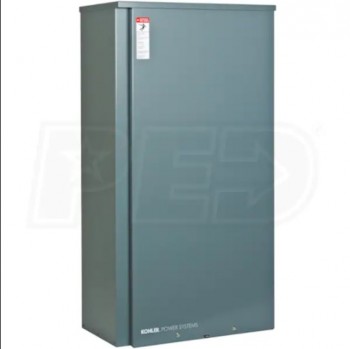

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (120/240V 3-Phase)

Image 1
  • Image 1
Price:
$1,153.97
SKU:
KOH-RXT400A-OD-1224-3PH
Brand:
Kohler
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Kohler RXT Series 400-Amp Outdoor Automatic Transfer Switch (120/240V 3-Phase)

  • Kohler RXT Series 400-Amp Automatic Transfer Switch
  • For use w/ 48RCL 120/240V 3-Phase models
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection

SPECIFICATIONS

Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
90 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531125507
Additional Model Numbers

RXT-JFTC-0400A, RXT-JFTC-400A-MV04
