NorthStar 10 kW Belt‑Driven Generator Head – 10,000 Surge / 9,600 Rated Watts (18 HP)

Home
Generator Heads
NorthStar Belt Driven Generator Head — 10,000 Surge Watts, 9,600 Rated Watts, 18 HP Required

NorthStar Belt Driven Generator Head — 10,000 Surge Watts, 9,600 Rated Watts, 18 HP Required

Price:

$575.16

SKU:

165928

Brand:

NorthStar

Weight:

0.00 LBS

Availability:

Ready Stock

Shipping:

Calculated at checkout

Product Description

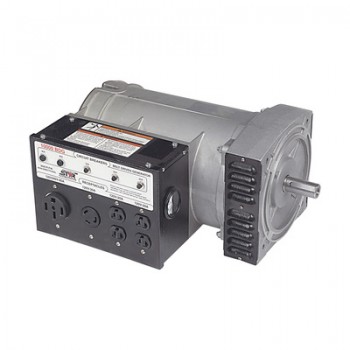

NorthStar Belt Driven Generator Head — 10,000 Surge Watts, 9,600 Rated Watts, 18 HP Required

Compact, brushless NorthStar® generator has low 5% or less total harmonic distortion — safe for computers and TVs! Takes an 18+ HP engine for rated output: 10,000 surge Watts and 9,600 continuous Watts. Generates 120 and 240 Volt power simultaneously. Input shaft turns clockwise and counterclockwise. Voltmeter. For horizontal application only.

What's Included

(1) Generator

Features + Benefits

Four 20 Amp 120V receptacles
One 30 Amp 120V locking plug receptacle
One 50 Amp 120/240V straight blade receptacle
Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-50R plugs
80 Amps @ 120 Volts, 40 Amps @ 240 Volts
100% Copper windings

Brushless design, less than 5% Total Harmonic Distortion
Bi-directional
Thermal overload protection
Conveniently located control panel
Push button circuit breakers
Plugs sold separately

Key Specs

Item#	165928
Brand	NorthStar
Manufacturer's Warranty	12 months parts / 12 months labor
Ship Weight	126.0 lbs
Required HP	18 (3480–3780 RPM)
Shaft Diameter	28 mm
Rated Watts	9,600
