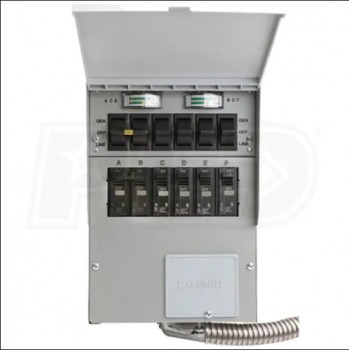

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Transfer Switch w/ Interchangeable Breakers

• Pro/Tran® 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
• The next generation of Loadside™ manual transfer switches
• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• 6 Total Circuits (1" Interchangable Style)
• (1) 30A 2-Pole, (2) 20A 1-Pole & (2) 15A 1-Pole
• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manager generator load
• Hinged, Non-Metalic Cover
• Protects toggle swtiches/breakrs & povides a finished apperance
• Powder-Coated Steel Cabinet For Indoor Installation
• 18" Flexible conduit w/ all factory wires clearly marked/colored
• (6) Combination 1/2" & 3/4" knockouts for easier installation
• Easily re-configured in the field for multiple 2-pole circuits
• *Note - Transfer Switch Is Designed For Hardwired Installation
• 30-Amp (L14-30) power inlet box needed to connect power cord
• Safety & Certifications
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

SPECIFICATIONS'
