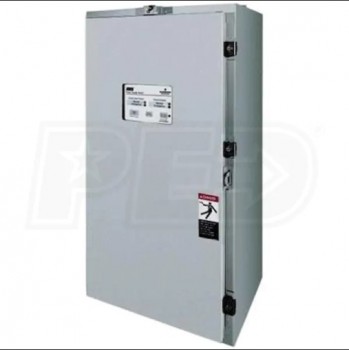

Briggs & Stratton By ASCO Series 285 200-Amp Automatic Transfer Switch (120/208V 3-Phase)

Image 1
  • Image 1
  • Image 2
Price:
$876.14
SKU:
BS‑ASCO285‑200‑2083P
Brand:
Briggs & Stratton
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Briggs & Stratton By ASCO Series 285 - 200-Amp Automatic Transfer Switch (120/208V 3-Phase)

  • 200-Amp 285 Series By ASCO Automatic Transfer Switch (120/208V 3-Phase)
  • Compatible with Briggs & Stratton 3-phase generators
  • NEMA 3R Outdoor Rated Enclosure
  • Approved for indoor or outdoor installations
  • Standard Installation
  • Requires a sub-panel for overload protection
  • True Double-Throw Contacts w/ Inherent Mechanical Interlocking
  • Prevents connection of generator and utility source for maximum safety
  • Terminals For Connection of Neutral and Ground Conductors
  • Allows for easier installation
  • Convenient Control Interface w/ Symbols & Visual Indicators
  • Makes it easy to see transfer switch and power source status
  • Built-In Auxiliary Contacts For Switch Position Indication
  • Provides immediate indication when the switch positions changes
  • Additional Features:
  • Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
  • Listed to UL 1008 for optional standby systems

SPECIFICATIONS

Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Consumer Warranty
3 Years
UPC
011675711061
