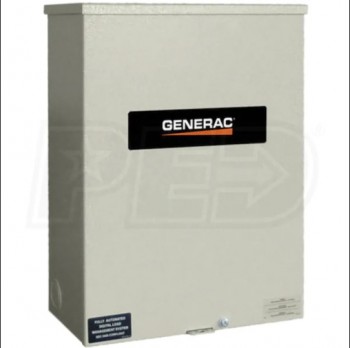

Generac 100-Amp Automatic Smart Transfer Switch w/ Power Management

• Generac RXS Series 100-Amp Automatic Transfer Switch w/ Power Management
• For Generac Evolution™ & Generac Nexus™ Controllers
• Designed For Standard Installation
• Requires a sub-panel for overload protection
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
• Great for homes with multiple Air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads & lock-out non-essential loads
• NEMA 3R Indoor/Outdoor Rated
• Steel, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (Gray)
• Tech Spec Summary: Only For Use w/ Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14
