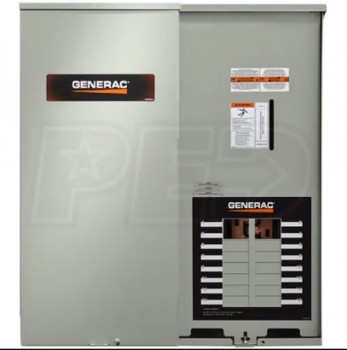

Generac 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center

• Generac 100-Amp Outdoor AutomaticTransfer Switch
• Designed to operate with Generac air-cooled generators (7-16kW Only)
• 16-Circuit Integrated Load Center For Essential Circuit Backup
• For large main service & only partial generator backup
• Also when main electrical breaker panel is located outdoors
• 16-Circuit Breaker Panel (Breakers Not Included)
• Use with Siemens, Eaton, or Square D 1-Inch breakers
• Expandable to 24-Circuits
• Bottom (4) breaker spaces will accommodate tandem breakers
• UL/CUL Listed
• Suitable for use in optional standby systems (NEC702)
• Aluminum NEMA 3R Indoor/Outdoor Enclosure
• Electrostatically applied & baked powder paint to resist corrosion
• Heavy Duty Generac Contactor - Rated @ 250 VAC - 1P
• UL recognized device, designed for years of service
• *Note - Generator controller handles all timing, sensing & exercise
• Tech Spec: Only For Use w/ Generac Air-Cooled Generators
• Load Transition Type: Open Transition
• Withstand Rating: 10,000 Amps --- Lug Range: 1/0 - #14

SPECIFICATIONS
