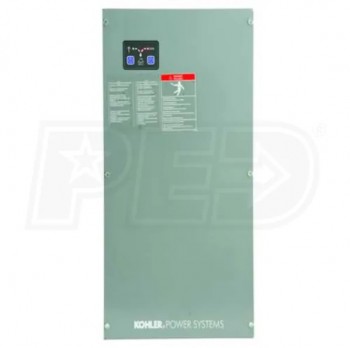

Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch w/ 24 Circuit Load Center

• Prewired Square D type QO load center
• 200 amp load centers use up to 24 circuit breakers - not included
• Standard Features
• UL listed and CSA certified
• Two-pole, single-phase, open-transition transfer switch
• Double throw inherently interlocked design
• Solid Neutral
• 220/240 VAC, 50/60 Hz (jumper)
• Contractor manually operable for maintenance purposes
• NEMA 3R (outdoor) enclosure
• MPAC™ 500 Controller Features
• User-friendly interface and easy-to-find international symbols
• LED indication of system faults
• Test button (with or without load)
• Exercise set button
• Single-phase voltage sensing on both sources
• Line-to-line frequency sensing
• Fixed time delays

SPECIFICATIONS
