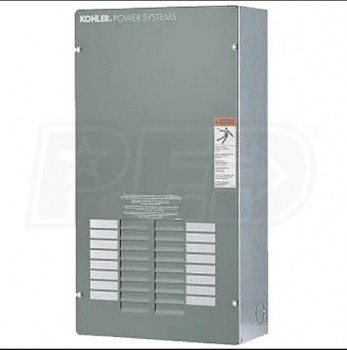

Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Image 1
  • Image 1
Price:
$271.02
SKU:
KO100‑RXT‑ATS‑16C
Brand:
Kohler
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Kohler RXT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

  • Kohler Model RXT 100-Amp Indoor Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Built-In 100-Amp 16-Circuit Load Center (Breakers Not Included)
  • Up to 8 tandem breakers can be used for a total of 24 circuits
  • NEMA 1R Indoor Steel Enclosure
  • Designed for indoor installation
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6 Inches
Product Width
13 Inches
Product Height
24 Inches
UPC
650531172198
Additional Model Numbers

RXT-JFNA-0100B, RXT-JFNA-0100B-QS5
