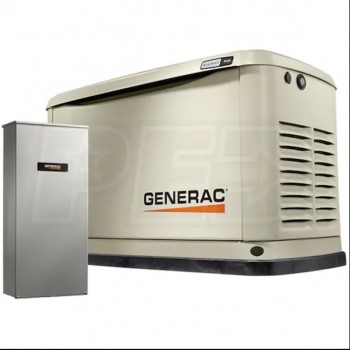

Generac Guardian® 10kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi

• 10kW (LPG) / 9kW (NG) Air-Cooled Standby Generator System
• Protects your home and family during a power outage
• Includes Mobile Link™ Wi-Fi Remote Monitoring*
• Monitor generator status on a smart phone, tablet or PC
• *Requires internet connection and wireless router
• 5-Year Limited Warranty
• Plus 24/7-365 Customer Support
• Have your questions answered when it's convenient for you
• 100-Amp Automatic Transfer Switch w/ Integrated Load Center
• NEMA 3R Outdoor Aluminum enclosure
• Great when main breaker panel is located outdoors
• 16-Circuit Essential Circuit Load Center
• For large main service & only partial generator backup
• Allows you to backup 120V & 240V circuits
• Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
• New 460cc Generac G-Force Engine
• Specifically designed for the demanding standby environment
• Full pressure lubrication system w/ 2 year oil change interval
• Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
• Connects to your existing LP or natural gas fuel supply
• TRUE POWER™ Electrical Technology
• Less than 5% Total Harmonic Distortion (THD) for utility grade power
• Automatic Digital Voltage Regulation (+/-1%)
• Allows for faster response time & maximum motor starting ability
• Evolution™ 2.0 Digital Controller
• Multilingual, 2-Line LCD display for simple, straightforward operation
• Programmable-exerciser helps prevent oil seal drying and damage
• QUIET-TEST™ Self-Test Mode
• Runs at a lower RPM for a five or twelve minute test
• Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
• Corrosion resistant design for all weather conditions
• Installation Flexibility*
• Can be installed within 18" of a building
• *Always check local building codes
• Generac Standby Generators & Engines - Built In The USA*
• Built in the USA using domestic & foreign parts
• Also Includes
• Smart battery charger & 14" Flexible fuel line connector
• Please Note - Battery Not Included (Sold Separately)

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

10000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

9000 Watts

LP Power Capacity

10000 Watts

NG Fuel Consumption @ 50% Load

101 ft³/hr

NG Fuel Consumption @ 100% Load

127 ft³/hr

LP Fuel Consumption @ 50% Load

.97 gallons/hr

LP Fuel Consumption @ 100% Load

1.48 gallons/hr

Rated Amps

41.7 Amps

Decibel Rating @ 7m

61

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

100-Amps

Max Circuits

16

Battery

Not Included

Enclosure

Aluminum

Circuit Breaker Size

45 Amps

Mounting Pad

Composite (Included)

Transfer Switch Style

Standard Installation

ATS Load Prioritizing

Not Compatible

ATS Load Shedding

Not Compatible

ATS Poles

2 Poles

ATS Service Disconnect

No

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency

Wi-Fi Remote Monitoring

Yes
