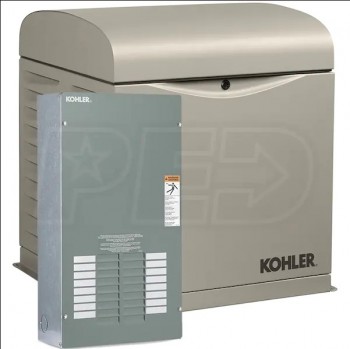

Kohler 10RESVL-100LC12 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch)

• Kohler Series 7000 V-twin OHV Engine
• Powerful and reliable engine with hydraulic valve lifters
• Powerful Performance w/ PowerBoost™ Technology
• Greater motor-starting ability for large electrical loads
• Premium Power Quality (+/-1% Voltage Regulation)
• Protects sophisticated electronics with low distortion (<5%THD)
• Fast Response Time
• Kohler™ generators restore power in as little as 10 seconds
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx 71 dB(A) Max
• RDC2 Controller
• Easily view ATS status via LED lights on controller
• Glare-resistant, 2-line 16-character display - No More Codes
• Real time clock allows you to easily set weekly exercise
• Includes OnCue Remote Monitoring System
• Built-in Ethernet card, no hardware needed for OnCue
• Bold New E-Coat Dipped Steel Enclosure
• Pained with a durable powder coat finish to minimize corrosion
• ***Not Compatible For Off-Grid Applications***
• Approved for stationary standby applications in locations served by a reliable utility source
• Premium Warranty - 5-year/2,000-Hour Limited Warranty
• *Please Note - Breakers not included

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

10000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

9000 Watts

LP Power Capacity

10000 Watts

NG Fuel Consumption @ 50% Load

120 ft³/hr

NG Fuel Consumption @ 100% Load

179 ft³/hr

LP Fuel Consumption @ 50% Load

1.5 gallons/hr

LP Fuel Consumption @ 100% Load

2.5 gallons/hr

Rated Amps

41.7 Amps

Decibel Rating @ 7m

67-71

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

100-Amps

Max Circuits

12

Battery

Not Included (500 CCA)

Enclosure

Steel

A/C Ton Rating

5-Tons

Mounting Pad

Steel (Included)

Transfer Switch Style

Standard Installation

ATS Load Prioritizing

Not Compatible

ATS Load Shedding

Not Compatible

ATS Service Disconnect

No

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
