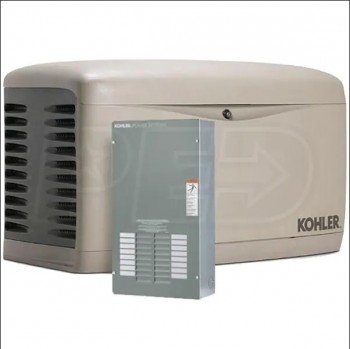

Kohler 14KW Composite Standby Generator System (100A Indoor 16-Circuit Switch)

• Kohler Command PRO® OHV Engine
• Powerful and reliable engine with hydraulic valve lifters
• Powerful Performance w/ PowerBoost™ Technology
• Greater motor-starting ability for large electrical loads
• Premium Power Quality (+/-1% Voltage Regulation)
• Protects sophisticated electronics with low distortion (<5%THD)
• Fast Response
• Kohler™ generators restore power in as little as 10 seconds
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
• RDC2 Controller
• Easily view ATS status via LED lights on controller
• Glare-resistant, 2-line 16-character display - No More Codes
• Real time clock allows you to easily set weekly exercise
• OnCue Remote Monitoring System (Included)
• Built-in Ethernet card, no hardware needed for OnCue
• Exclusive 100% Corrosion-Proof Composite Enclosure
• Will not rust - even in harsh seaside environments

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

14000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

12000 Watts

LP Power Capacity

14000 Watts

NG Fuel Consumption @ 50% Load

124 ft³/hr

NG Fuel Consumption @ 100% Load

193 ft³/hr

LP Fuel Consumption @ 50% Load

1.8 gallons/hr

LP Fuel Consumption @ 100% Load

2.3 gallons/hr

Rated Amps

58 Amps

Decibel Rating @ 7m

67

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

100-Amps

Max Circuits

16

Battery

Not Included (500 CCA)

Enclosure

Composite

A/C Ton Rating

5-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Standard Installation

ATS Load Prioritizing

Not Compatible

ATS Load Shedding

Not Compatible

ATS Service Disconnect

No

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
