Product Description

Generac Portable Power Distribution Box — 100 Amps, 120/208 Volts, 3-Phase

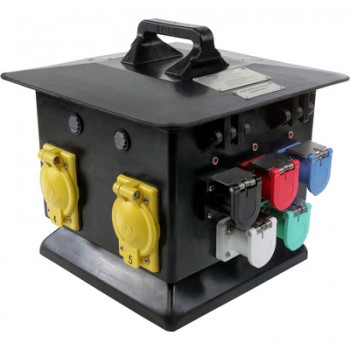

This Generac Portable Power Distribution Box distributes power to quad string cables, allowing independent phase distribution. This versatile box can be powered from a generator, a panel or a larger distribution box. Use it to power lights, effects and audio equipment at live events, convention centers and industrial settings with 20 Amp, 3-phase locking outlet power. The locking outlets help ensure positive connection and prevent disconnecting under load.

What's Included

(1) Portable power distribution box

Features + Benefits

Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
Circuit breakers are mounted under hinged lid for enhanced safety
Stackable and compact for easy storage and portability
Elevated base keeps receptacles above ground level

Input: (1) set of five 16 Series, 400 Amp, single-pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Output: (5) NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking outlets, cover doors, panel mount
(15) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
