Product Description

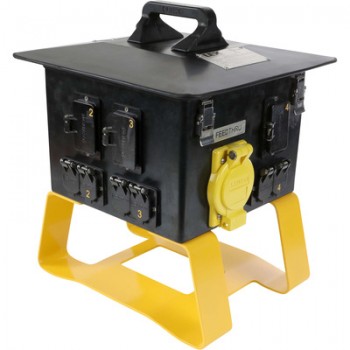

Generac Portable Power Distribution Box — 50 Amps, 125/250 Volts

This Generac Portable Power Distribution Box provides the convenience, safety and durability required for electrical distribution, maintenance, shipbuilding, generator rental, construction, outdoor events and shelters. This lightweight, compact unit meets UL, NEC and OSHA requirements for events and generator rental, plus meets OSHA Regulation 20 Part 1926, Subpart K standards for open-neutral GFCI protection for enhanced safety. The heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.

What's Included

(1) Portable power distribution box

Features + Benefits

Heavy-duty aluminum legs position the box at the NEC regulatory height of 6 inches while allowing for storage and transport stacking
GFCI protection helps prevent unsafe operating conditions and nuisance tripping
Thermal magnetic circuit breakers are located under a heavy duty rubber, waterproof, self-closing lid
Locking receptacles secure connections to prevent accidental separation
cULus Listed and TYPE 3R rainproof for outdoor use

Feed thru feature allows multiple boxes to be placed along one feed
Spring-loaded covers protect receptacles and inlets from dirt and moisture intrusion
Molded handle enhances portability
Includes (1) 50 Amp, 3-pole, 4-wire, 125/250 VAC, California-style locking inlet; (6) NEMA L5-20, 20 Amp, 2-pole, 3-wire, 125 VAC, locking outlets
(6) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers; (1) 30 Amp, 250 VAC, double pole, hydraulic magnetic, branch-rated circuit breaker
