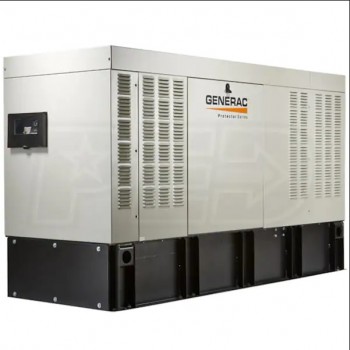

Generac Protector® 20kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)

• Generac Protector® Series Diesel Standby Generator
• Designed for residential and light commercial applications
• Fully Automatic Operation When Paired w/ Generac ATS
• Generator is only compatible with Generac Auto Transfer Switches
• Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
• Monitor generator status on a smart phone, tablet or PC
• *Requires internet connection
• Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine
• Fuel efficient design runs at 1800 RPM for long engine life
• Integrated, Extended-Run, 95-Gallon Double-Wall Base Fuel Tank
• Provides up to 92.2 hours of run time @ 1/2 load
• Two-Line LCD Evolution Controller
• Easy viewing, monitoring & management of generator functions
• Quiet-Test™
• Runs at a lower RPM, is quieter and consumes less fuel
• Isochronous Electronic Governor Control
• Precise load response & voltage/frequency regulation (±1%)
• Corrosion-Resistant Aluminum Enclosure
• Enhanced durability, ideal for coastal & salt-water environments
• Sound dampening design limits sound pressure to a low 70dB(A)
• Code Ready - Compatibility With A Variety Of Environments
• External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

20000 Watts

Fuel Type

Diesel

Rated Amps

83 Amps

Diesel Fuel Consumption @ 50% Load

1.03 gallons/hr

Tank Size

95 Gallons

Run Time @ 50% Load

92.2 Hours

Fuel Tank Material

Metal

Decibel Rating @ 7m

65 Test (70 Run) dbA

Transfer Switch

Automatic (Not Included)

Battery

Not Included (700 CCA)

Enclosure

Aluminum

Circuit Breaker Size

100 Amps

Mounting Pad

Concrete (Not Included)

Cooling System

Liquid Cooled

UL Listed

Yes

Grade Type

Emergency

Wi-Fi Remote Monitoring

Yes
