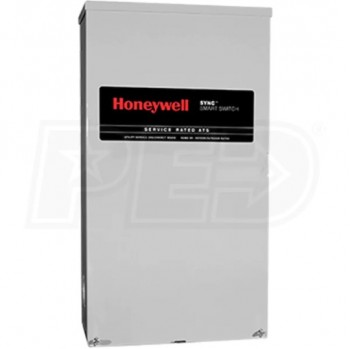

Honeywell™ 100-Amp SYNC™ Smart Automatic Transfer Switch w/ Power Management (Service Disconnect)

• Honeywell™ 100-Amp Automatic Transfer Switch
• Designed speficially for Honeywell™ SYNC™ Controllers
• Service Entrance Rated (Load Side & Line Side Disc. Breakers)
• Installs between main meter & service panel
• DPM Technology So Your Generator Works Smarter
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
• Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads & lock-out non-essential loads
• NEMA 3R Indoor/Outdoor Rated
• Aluminum, wall mountable & pad-lockable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (Gray)
• Tech Spec Summary: Only For Use w/ Honeywell Generators
• Load Transition Type: Open Transition
• Withstand Rating: 10,000 Amps --- Lug Range: 2/0 - #14
