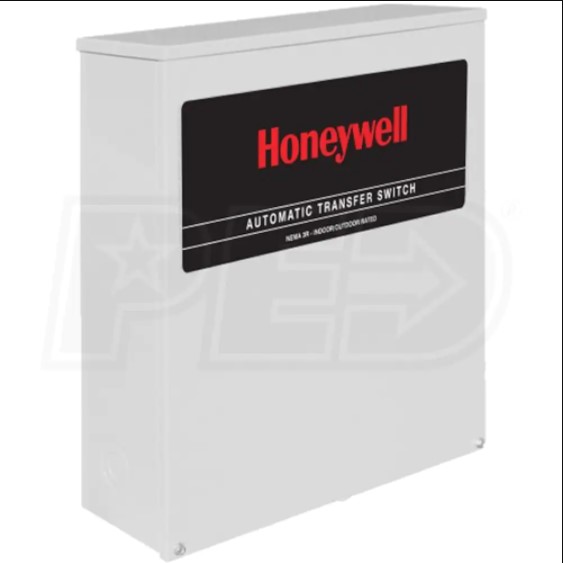

Honeywell™ Commercial 100-Amp Automatic Transfer Switch (277/480V)

Image 1
  • Image 1
Price:
$532.67
SKU:
HW-ATS100C-480V
Brand:
Honeywell
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Honeywell™ Commercial 100-Amp Automatic Transfer Switch (277/480V)

  • 100-Amp Automatic Transfer Switch (277/480V 3-Phase)
  • For 277/480V 3-Phase Honeywell™ Commercial Generators
  • Aluminum, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 100-Amps @ 277/480V
  • Transition Type: Open
  • Withstand Rating: 14,000 Amps --- Lug Range: 2/0 - #14

SPECIFICATIONS

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
UPC
696471612936
