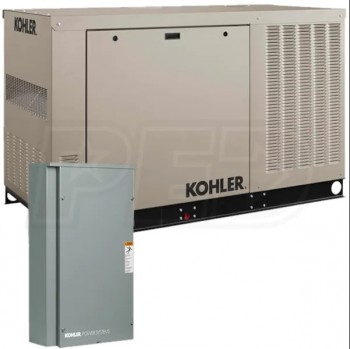

Kohler 24RCL - 24kW Emergency Standby Power Generator System (200A Service Disc. ATS w/ Load Shedding)

• Kohler 24RCL Liquid-Cooled Standby Generator Kit
• For larger homes & light commercial applications
• Premium 5-Year / 2000 Hour Limited Warranty
• Backed by Kohler's extraordinary reliability& performance
• RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch (RXT-JFNC-0200ASE)
• Mounts between meter and main service panel
• Load Shed Kit - Manage (2) HVAC + (4) Non-Essential loads*
• *Each Non-Essential load requires Kohler PRM Module (Sold Separately)
• Brushless-Alternator For High Quality, Cleaner Generator Power
• Advanced voltage / Hz regulation prevents unstable power
• Protects sophisticated electronics with ultra-low distortion (THD)
• RDC2 Digital Controller - Controls Generator & RXT Series Transfer Switch
• Provides advanced control, system monitoring & diagnostics
• 2-Line Backlit LCD Digital Display
• Easy to read local data access in all lighting conditions
• 2.2L Liquid-Cooled Engine (1800 RPM)
• Runs on clean burning Natural Gas or LP fuel w/ simple field conversion
• Sound-Attenuating Aluminum Enclosure & "Quieter" Cooling System
• Fade, scratch, & corrosion-resistant powder-baked finish
• Electronic fan, internal silencer & acoustic insulation keeps dB under 61 @ 7M (23')
• Standard OnCue Plus Generator Management System
• Compatible w/ OnCue Plus Wireless Generator Management System
• Real-time power status and the ability to manage your entire backup system
• ***Not Compatible For Off-Grid Applications***
• Approved for stationary standby applications in locations served by a reliable utility source

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

24000 Watts

Surge Watts

24000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

21000 Watts

LP Power Capacity

24000 Watts

NG Fuel Consumption @ 50% Load

199 ft³/hr

NG Fuel Consumption @ 100% Load

301 ft³/hr

LP Fuel Consumption @ 50% Load

2.4 gallons/hr

LP Fuel Consumption @ 100% Load

3.2 gallons/hr

Rated Amps

100 Amps

Decibel Rating @ 7m

55 Test (61 Run) dbA

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Not Included (630 CCA)

Enclosure

Aluminum

Mounting Pad

Concrete (Not Included)

Transfer Switch Style

Service Disconnect

ATS Load Shedding

Built-In

Cooling System

Liquid Cooled

Grade Type

Emergency
