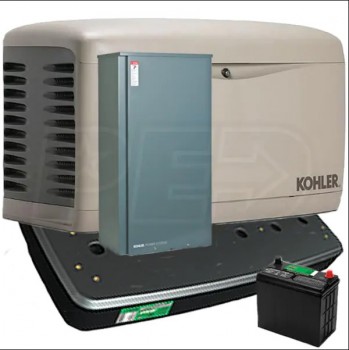

Kohler 20kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + QwikHurricane® Pad + Battery

• Kohler 20RESCL Air-Cooled Standby Generator System
• Fully Automatic Operation - Includes Automatic Transfer Switch
• Premium 5-Year / 2000 Hour Limited Warranty
• Backed by Kohler's extraordinary reliability & performance
• RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
• Mounts between meter and main service panel
• Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
• Fast Response Time & PowerBoost™ Technology
• Greater motor-starting ability for large electrical loads
• Kohler generators restore power in as little as 10 seconds
• Cleaner Power for Sensitive Electronics
• Protects sophisticated electronics with low distortion (THD)
• RDC2 Controller
• Provides advanced control, system monitoring & diagnostics
• 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
• 2-Line Backlit LCD Digital Display & Real-Time Clock To Set Weekly Exercise
• No More Codes - Easy to read local data access in all lighting conditions
• Includes OnCue Plus Remote Monitoring App
• Real-time power status and the ability to manage your entire backup system
• Kohler Command PRO® OHV Engine
• Runs on clean-burning Natural Gas or LPG
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx 69 dB(A) @ 23 ft.
• Exclusive 100% Corrosion-Proof Composite Enclosure & Polymer Base
• Will not rust - even in harsh seaside environments
• ^^^Not Compatible For Off-Grid Applications^^^
• Approved for stationary standby applications in locations served by a reliable utility source
• Includes QwikHurricane® Universal Generator Pad™
• Lightweight, Easy-To-Install Design
• Forms a solidus gel and weighs 330 lbs. when filled

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

20000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

18000 Watts

LP Power Capacity

20000 Watts

NG Fuel Consumption @ 50% Load

161 ft³/hr

NG Fuel Consumption @ 100% Load

281 ft³/hr

LP Fuel Consumption @ 50% Load

2.3 gallons/hr

LP Fuel Consumption @ 100% Load

3.9 gallons/hr

Rated Amps

83 Amps

Decibel Rating @ 7m

69 Run (64 Test) dbA

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Included

Enclosure

Composite

A/C Ton Rating

2 x 5-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Service Disconnect

ATS Load Prioritizing

Built-In

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
