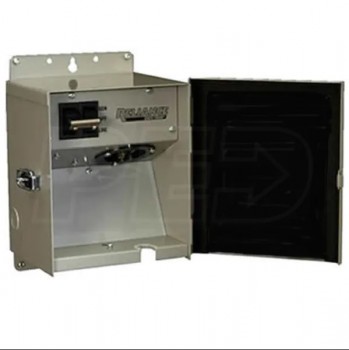

Reliance Controls 30-Amp (120/240V 1-Circuit) Outdoor Transfer Switch
Price:
$89.92
SKU:
RC‑CSR302
Brand:
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Product Description
Reliance Controls 30-Amp (120/240V 1-Circuit) Outdoor Transfer Switch
- Outdoor Installation
- Ideal for well pumps, traffic signals, cell towers, etc.
- Raintight Connection
- Accomodates cord even when cover is closed and latched
- Double-Throw Switch
- Isolates the generator from the utility line at all times
- UL Listed
- Certified for use by Underwriter Laboratories
SPECIFICATIONS
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
1
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
10 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
8.75 Inches
Product Width
7.5 Inches
Product Height
6.25 Inches
UPC
851890000355
Transfer Switch Circuits
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
