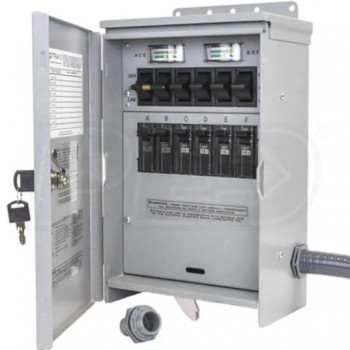

Reliance Controls Pro/Tran 2 - 20-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet

• Pro/Tran® 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
• The next generation of Loadside™ manual transfer switches
• Non-Defeatable (Break-Before-Make) Double-Throw Switch
• Eliminates dangerous backfeeds and electrical overloads
• 6 Total Circuits (1" Interchangable Style)
• (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manage generator load
• Factory Installed (L14-20) Power Inlet w/ Flip-Lid
• Easily connect your generator cord on bottom of switch
• NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
• Gasketed design, provides liquid tight protection in all seasons
• Key lockable door prevents tampering & unauthorized use
• 16" Flexible, Non-Metalic Liquid-Tight Conduit (1") w/ Fittings
• (5) Combination 1/2" & 3/4" knockouts for easier installation
• Factory-marked, color-coded wires simplifies installation
• Safety & Certifications
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• •Meets all requirements of article 702 of the NEC ANSI/NFPA 70

SPECIFICATIONS
