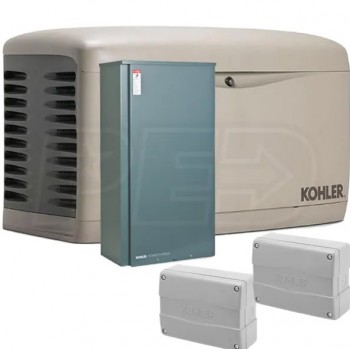

Kohler 20kW Composite Home Standby Generator Bundle (200A Service Disc. w/ Load Shedding & (2) Power Relay Mod.)

• Kohler 20kW Composite Home Standby Generator Kit
• Fully Automatic Operation - Includes Automatic Transfer Switch (Service Entrance Rated)
• Also includes (2) Kohler 50-Amp Power Relay Modules (PRM)
• Premium 5-Year / 2000 Hour Limited Warranty
• Backed by Kohler's extraordinary reliability & performance
• RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch (RXT-JFNC-0200ASE)
• Mounts between meter and main service panel
• Load Shed Kit - Manage (2) HVAC + (4) Non-Essential loads* (Require PRM Modules)
• Includes (2) Kohler 50-Amp Power Relay Modules (PRM)
• Helps your generator balance additional high electrical loads (Well Pumps, HVAC, etc)
• Runs on Clean Burning Natural Gas or LPG - Simple Field Conversion
• While still maintaining emission regulations for U.S. EPA & California
• Fast Response Time & Powerful Performance w/ PowerBoost™ Technology
• Kohler® generators restore power in as little as 10 seconds
• Greater motor-starting ability for large electrical loads
• Premium Power Quality (+/-1% Voltage Regulation)
• Protects sophisticated electronics with low distortion (<5%THD)
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft.)
• DC2 (6-Button) Digital Controller
• Glare-resistant, 2-line 16-character display - No More Codes
• Easily view ATS status via LED lights on controller
• Exclusive 100% Corrosion-Proof Composite Enclosure
• Will not rust - even in harsh seaside environments; Impact-resistant down to -30° F.
• Polymer Base Engineered For Easier Installation
• Fuel and electric connection through enclosure wall, no-more stub-ups
• Optional OnCue Remote Monitoring System (Sold Separately)
• Built-in Ethernet card, no hardware needed for OnCue

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

20000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

18000 Watts

LP Power Capacity

20000 Watts

NG Fuel Consumption @ 50% Load

161 ft³/hr

NG Fuel Consumption @ 100% Load

281 ft³/hr

LP Fuel Consumption @ 50% Load

2.3 gallons/hr

LP Fuel Consumption @ 100% Load

3.9 gallons/hr

Rated Amps

83 Amps

Decibel Rating @ 7m

69

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Not Included (500 CCA)

Enclosure

Composite

A/C Ton Rating

5-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Service Disconnect

ATS Load Prioritizing

Built-In

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
