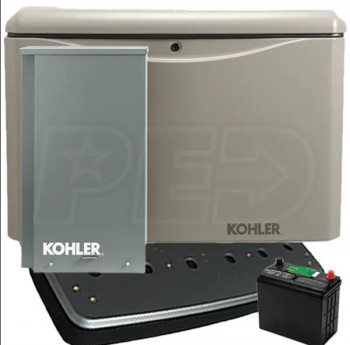

Kohler 14RCAL-200SELS 14kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shed) + QwikHurricane® Pad + Battery

• 14kW (LPG) / 12kW (NG) Air-Cooled Standby Generator Package
• Protects your home and family during a power outage
• Fully Automatic Operation - Includes Automatic Transfer Switch
• RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
• NEMA 3R Enclosure mounts between meter & main service panel
• Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
• Kohler Command PRO® OHV Engine
• Meets emission regulations for U.S. EPA & California
• Powerful and reliable engine with hydraulic valve lifters
• New 100% Corrosion-Proof Aluminum Enclosure
• Aluminum base can be mounted on gravel or cement pad
• Meets 181 MPH wind rating; Impact-resistant down to -30° F
• Powerful Performance w/ PowerBoost™ Technology
• Greater motor-starting ability for large electrical loads
• Premium Power Quality (+/-1% Voltage Regulation)
• Protects sophisticated electronics with low distortion (<5%THD)
• Fast Response Time
• Kohler™ generators restore power in as little as 10 seconds
• New Silencer Reduces Sound Levels & Provides Quiet Operation
• Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
• RDC2 Digital Controller
• Glare-resistant, 2-line 16-character display - No More Codes
• Easily view ATS status via LED lights on controller
• Real time clock allows you to easily set weekly exercise
• OnCue® Plus Remote Monitoring System (Included)
• Built-in Ethernet card, no hardware needed for OnCue
• Easier Installation
• Streamline design reduces time required to install generator
• Installation Flexibility*
• Can be installed within 18" of a building / home
• *Always check local building codes
• Premium Warranty - 5-year/2,000-hour limited warranty
• ***Requires PRM (Sold Separately)
• Includes QwikHurricane® Universal Generator Pad™
• Lightweight, Easy-To-Install Design
• Forms a solidus gel and weighs 330 lbs. when filled

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

14000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

12000 Watts

LP Power Capacity

14000 Watts

NG Fuel Consumption @ 50% Load

124 ft³/hr

NG Fuel Consumption @ 100% Load

193 ft³/hr

LP Fuel Consumption @ 50% Load

1.8 gallons/hr

LP Fuel Consumption @ 100% Load

2.3 gallons/hr

Rated Amps

58 Amps

Decibel Rating @ 7m

67 Run (62 Test) dbA

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Included

Enclosure

Aluminum

A/C Ton Rating

2 x 5-Tons

Mounting Pad

Composite (Included)

Transfer Switch Style

Service Disconnect

ATS Load Prioritizing

Built-In

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency

Product Specs

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Rated Watts

14000 Watts

Fuel Type

LP/Natural Gas

NG Power Capacity

12000 Watts

LP Power Capacity

14000 Watts

NG Fuel Consumption @ 50% Load

124 ft³/hr

NG Fuel Consumption @ 100% Load

193 ft³/hr

LP Fuel Consumption @ 50% Load

1.8 gallons/hr

LP Fuel Consumption @ 100% Load

2.3 gallons/hr

Rated Amps

58 Amps

Decibel Rating @ 7m

67 Run (62 Test) dbA

Transfer Switch

Automatic (Included)

Transfer Switch Amperage

200-Amps

Battery

Not Included (500 CCA)

Enclosure

Aluminum

A/C Ton Rating

2 x 5-Tons

Transfer Switch Style

Service Disconnect

ATS Load Prioritizing

Built-In

ATS Load Shedding

Built-In

ATS Service Disconnect

Yes

Cooling System

Air Cooled

UL Listed

Yes

Grade Type

Emergency
