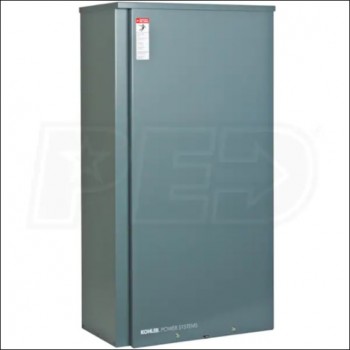

Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Price:
$432.95
SKU:
KO200‑RXT‑ATS‑SE
Brand:
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Product Description
Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
- Kohler RXT Series 200-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Service Entrance Rated
- Includes disconnect circuit breakers on both sources
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Standard Features
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads***
- Added Safety
- Contractor manually operable for maintenance purposes
SPECIFICATIONS
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6.9 Inches
Product Width
16.4 Inches
Product Height
28.9 Inches
UPC
650531125132
Additional Model Numbers
