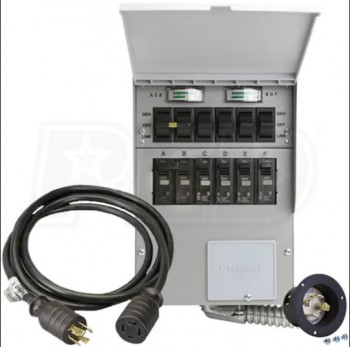

Reliance Controls Pro/Tran 2 - 30-Amp (6-Circuit) Power Transfer Switch Kit w/ 25' Cord

Image 1
  • Image 1
Price:
$193.46
SKU:
RC-31406CRK
Brand:
Reliance
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Reliance Controls Pro/Tran 2 - 30-Amp (6-Circuit) Power Transfer Switch Kit w/ 25' Cord

  • Reliance 30-Amp 6-Circuit Power Transfer Kit
  • Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran® 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • 6 Total Circuits (1" Interchangable Style)
  • (1) 20A 2-Pole, (2) 20A 1-Pole & (2) 15A 1-Pole
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • 25' 30-Amp (L14-30) Generator Power Cord
  • Heavy-Duty, rubber molded design rated up to 7500w @ 240V
  • Safety & Certifications
  • Certified to UL Stanard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
7.75 Inches
Product Height
4.5 Inches
UPC
815181012687
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Wire Gauge
10 Gauge
