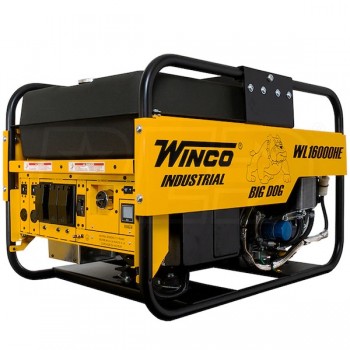

Winco WL16000HE-03/A- 14,000 Watt Electric Start Fuel-Injected Portable Generator w/ Honda iGX V-Twin (49-State)

• Winco WL16000He-03/A Industrial Series Portable Generator
• One of the largest Honda-powered portable generators on the market
• Electric Start (Battery Not Included)
• Allows for easier starting, just turn the key
• Flywheel-mounted charger keeps battery charged when engine runs
• 779cc Honda iGX800 Fuel-Injected V-Twin OHV Engine
• EFI technology for fuel efficiency, smoother operation & better Hz control
• Full pressure lubrication system w/ spin-on oil filter
• Low Oil Protection
• Shuts engine down in the event of a low oil event to prevent engine damage
• Brushless Industrial Alternator
• 100% copper windings, NEMA Class H insulation
• Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
• Inherent voltage regulation protects electronics from surges
• 15-Gallon Steel Fuel Tank w/ Fuel Gauge
• EPA approved design eliminates carbon emissions
• 120/240V 50-Amp (CS6365) Twist-lock Receptacle
• Allows for connection to a manual transfer switch (MTS)
• YourGen Digital Meter w/ LED Screen
• Displays hours, RPMs, voltage & frequency (Hz) readings
• Load bars makes it easy to balance generator loads
• Visual warnings for added safety and maintenance
• Premium Circuit Breakers
• Visi-Trip indicator to easily identify a tripped circuit
• Wrap-Around Tubular Steel (13-Gauge) Cradle
• Powder-coat paint protects finish from damage and debris
• Standard Lifting Eye
• Make this generator easier to lift
• 100% Load Tested
• All generators are tested prior to leaving the factory

SPECIFICATIONS

Voltage

120/240 Single-Phase

Frequency

60 Hertz

Alternator

Brushless

Auto Voltage Regulation

Yes

Rated Watts

14000 Watts

Surge Watts

16000 Watts

Fuel Type

Gasoline

Rated Amps

58 Amps

Portability Kit

Sold Separately

Tank Size

15 Gallons

Run Time @ 50% Load

11 Hours

Fuel Tank Material

Metal

Fuel Gauge

Yes

Decibel Rating @ 7m

82

Idle Control

No

Hour Meter

Yes

Voltage Meter

Yes

Lifting Eye

Yes

Battery

Not Included

Grade Type

Professional

CO Sensing

No
