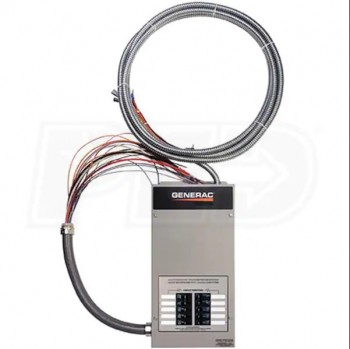

Generac 50-Amp Indoor Automatic Transfer Switch w/ 10-Circuit Load Center

Image 1
  • Image 1
Price:
$411.22
Brand:
Generac
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Generac 50-Amp Indoor Automatic Transfer Switch w/ 10-Circuit Load Center

  • 50-A Indoor Automatic Transfer Switch w/ 10-Circuit Load Center
  • Perfect for backing up emergency circuits
  • Steel NEMA-1 Indoor Enclosure
  • Electrostatically applied and baked powder paint
  • Breakers:
  • 3 x 15A (120V) 1-Pole
  • 3 x 20A (120V) 1-Pole
  • 1 x 20A (240V) 2-Pole
  • 1 x 30A (240V) 2-Pole
  • Includes:
  • Pre-Wired External Connection Box
  • 30' Pre-Wired Conduit From Transfer Switch To Generator
  • 2' Pre-Wired Conduit From Transfer Switch To Main Panel

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Max Circuits
10
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Transfer Switch Style
Pre-Wired (10-Circuit)
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
50 Amps
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Overview
Weight
30 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
22.5 Inches
Product Width
15.4 Inches
Product Height
3.8 Inches
UPC
696471072341
Transfer Switch Circuits
15A 120V
3
20A 120V
3
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
