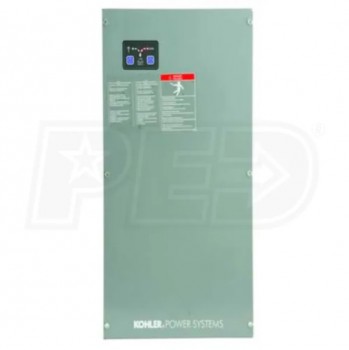

Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch
Price:
$512.21
SKU:
KO200‑RDT‑ATS
Brand:
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Product Description
Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch
- Standard Features
- UL listed and CSA certified
- Two-pole, single-phase, open-transition transfer switch
- Double throw inherently interlocked design
- Solid Neutral
- 220/240 VAC, 50/60 Hz (jumper)
- Contractor manually operable for maintenance purposes
- NEMA 3R (outdoor) enclosure
- MPAC™ 500 Controller Features
- User-friendly interface and easy-to-find international symbols
- LED indication of system faults (Inside)
- Test button (with or without load)
- Exercise set button
- Single-phase voltage sensing on both sources
- Line-to-line frequency sensing
- Fixed time delays
SPECIFICATIONS
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7.0 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
