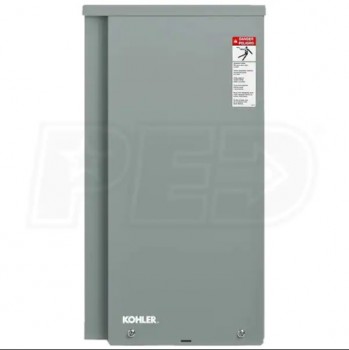

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch

Image 1
  • Image 1
Price:
$257.39
SKU:
KO100‑RXT‑ATS
Brand:
Kohler
Weight:
0.00 LBS
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch

  • Kohler RXT Series 100-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads***
  • Added Safety
  • Contractor manually operable for maintenance purposes

SPECIFICATIONS

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7.1 Inches
Product Width
13.2 Inches
Product Height
24.5 Inches
Additional Model Numbers

RXT-JFNC-0100A, RXT-JFNC-0100A-QS7
